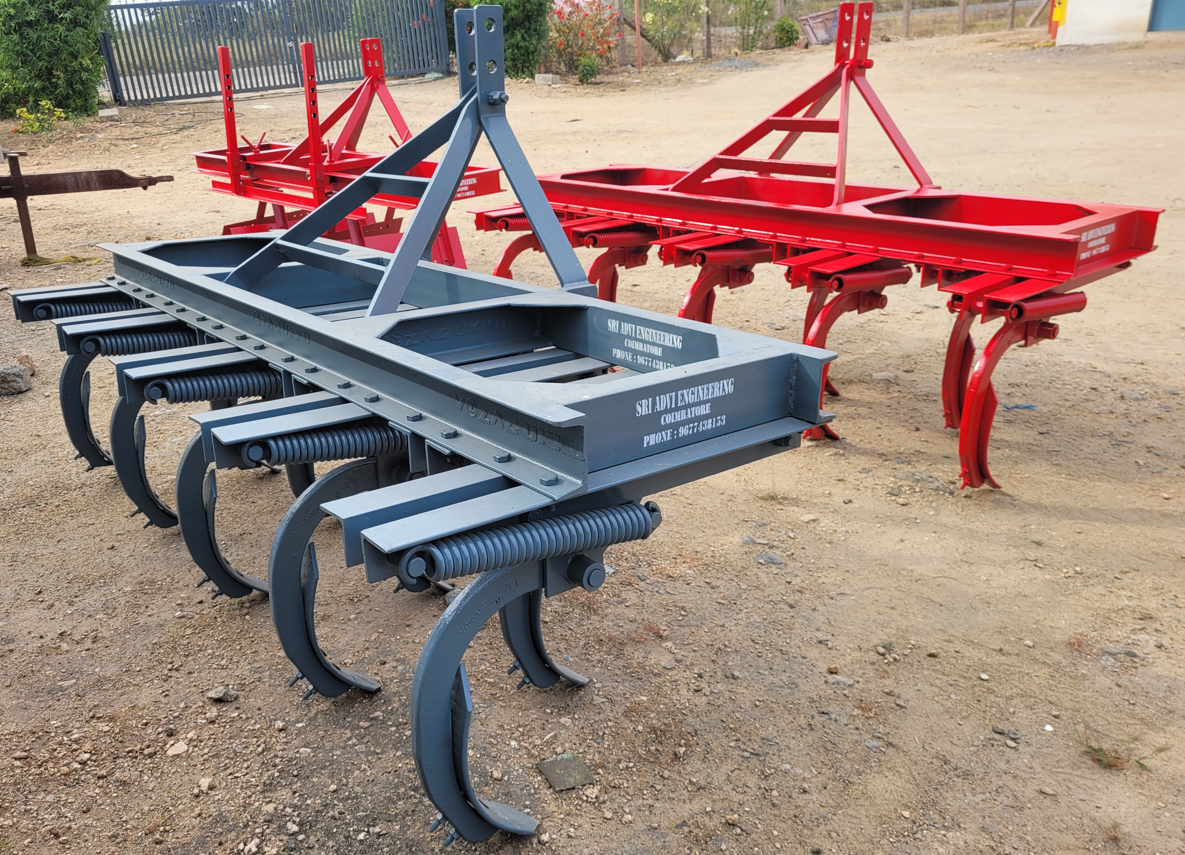

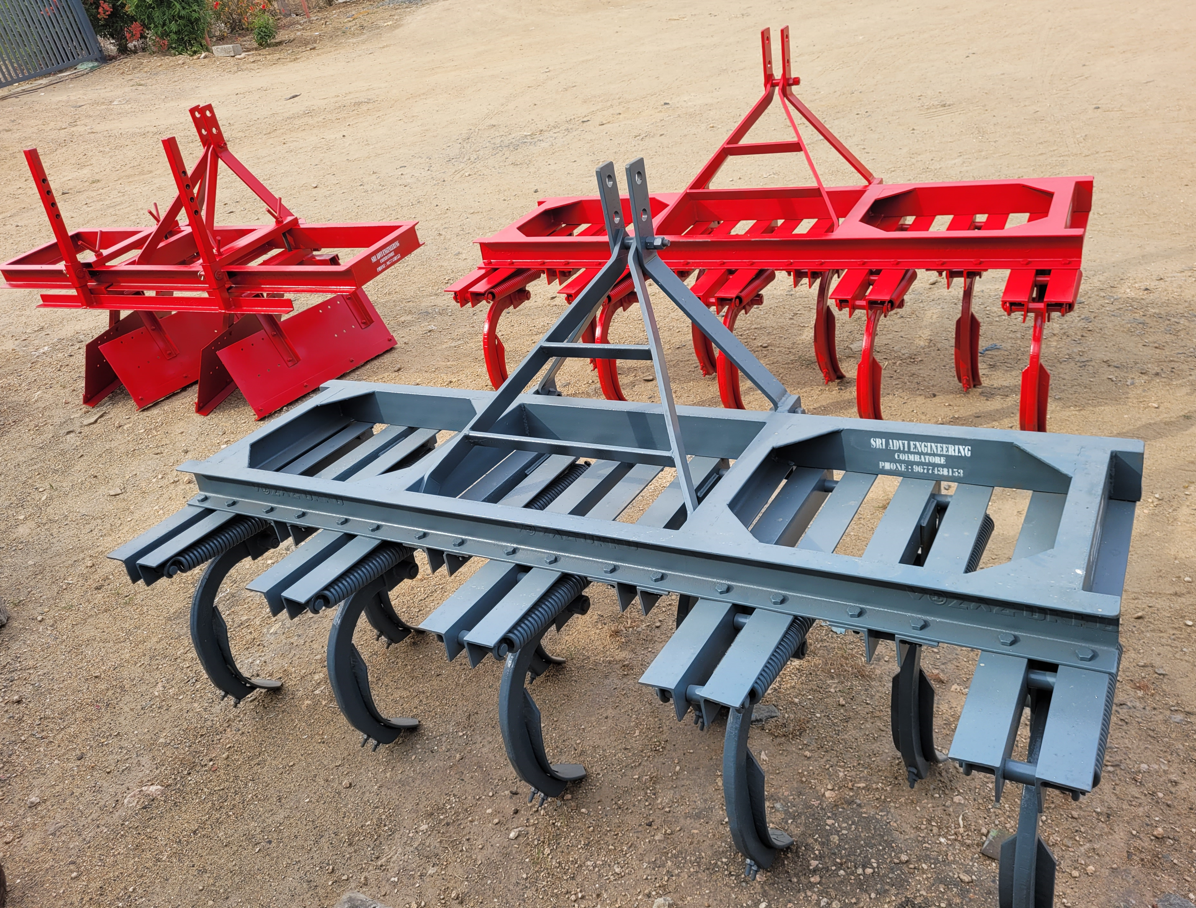

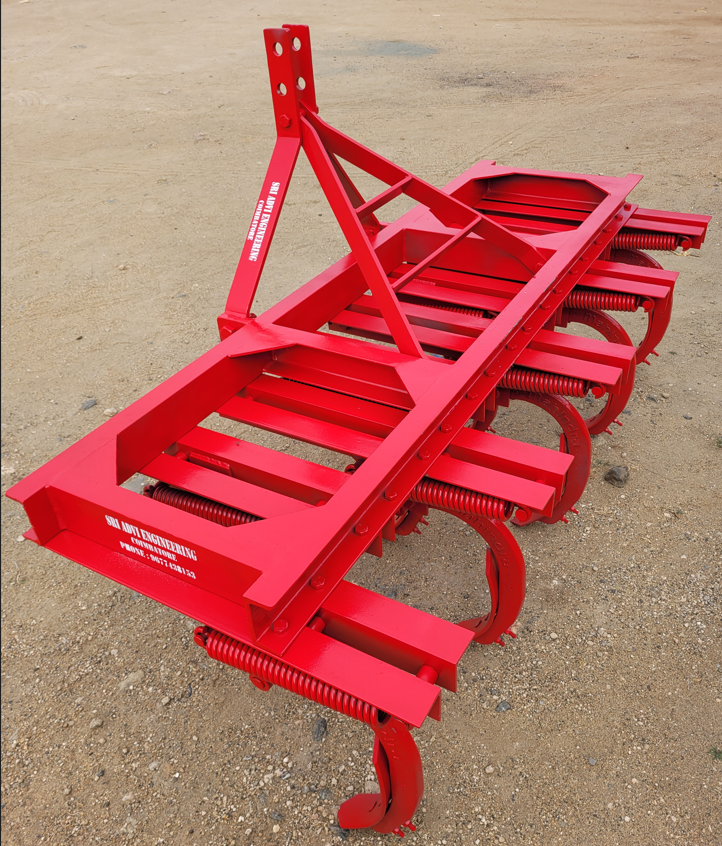

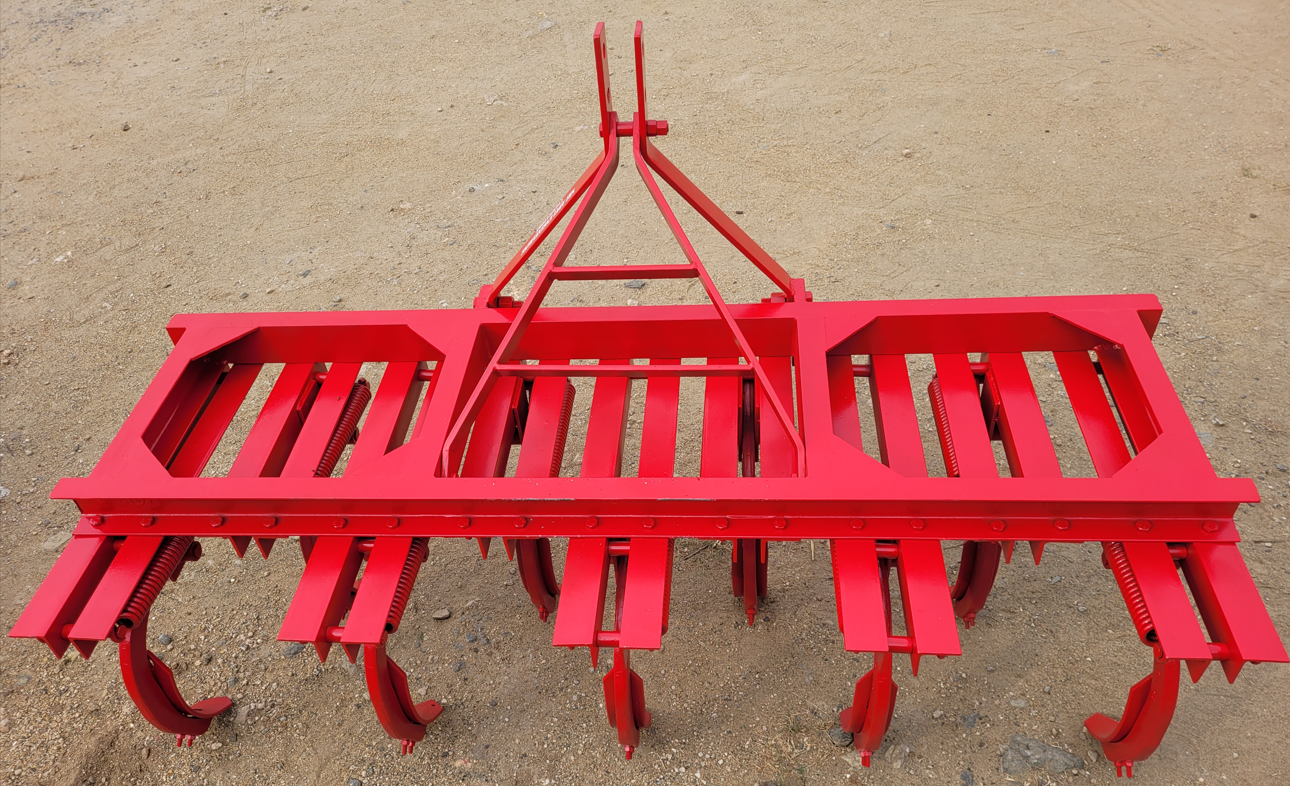

Spring Loaded Tiller : 9 Tyne

PRODUCT FEATURES:
  • Spring Loaded cultivator is used for tilling all kinds of soils, ranging from soft and medium soil to stony and rough soil.
  • Heavy duty spring tiller is designed to withstand toughest work conditions
  • High strength and rigid tynes
  • Provision for spacing adjustments between tynes to be useful for various soil conditions and various crops.
  • Depth of cultivation is with 3-point linkage system
  • It can give the depth up to 7 to 9 inches in hard soil
  • Prepares seed beds quickly and economically

PRODUCT SPECIFICATIONS:

  • Mounting CAT    :   CAT II.
  • Frame Channel    :    100x50 - Vizag/Sail Make Steel
  • Size of Tyne / Material     :  25 mm thickness / EN 8
  • Overall Dimensions (L x W x H)    :   2000 x 900 x 1170 mm.
  • Shovel Thickness / Material    :  8 mm / EN 42
  • Working Width(approx.)     :  1856 mm
  • Space Between Tyne    :  230 mm
  • Weight (in Kg.)    :  280 - 380
  • Tractor HP Range    :  35 - 50
