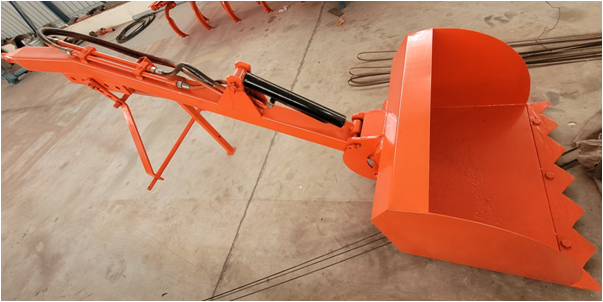

Hydraulic Bucket Arm

Product features :

  • The Hydraulic Bucket is ideal for loading trucks, trailers, farm goods and other.
  • It is fabricated with the highest quality steel plates and hydraulic tilting.
  • Ruggedly constructed from tabular steel, the crane is capable of lifting a load up to 200 – 300 kg. The goose – neck design makes it particularly handy for loading and unloading trucks and Trailors.
  • Simple – One minute attachment.
  • Height of lift is adjustable with help of hydraulic system.
  • It is recommended that the stabilizer bar chain be used if transporting over rough ground.

Technical Specifications:

  • Match Tractor :      45 HP and above
  • Bucket Capacity :      0.2 mm
  • Bucket Width :     0.8 mtr.
  • Overall Dimensions (L x W x H):      1875 x 840 x 1528 mm
  • Bucket Rotating Angle :     120º
  • Discharge Height :     1800 mm
  • Control level :     1 Hydraulic Cylinder
