Pump Options:

Piston pump :

Suitable for economic and effective spray of crop protection chemicals and water soluble fertilizers in agricultural crops

Tractor PTO shaft connected V Groove Pulley with Belt arrangement

Technical Data :
  • Speed :      950 to 1200 RPM
  • Pressure :      20 - 28 bar
  • Capacity :      50 to 80 LPM

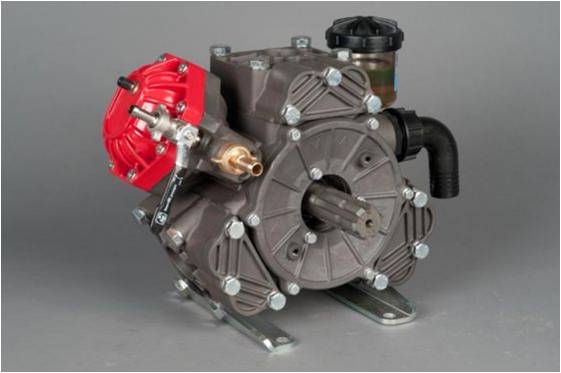

Diaphragm Pump (Imported):

Three semi-hydraulic diaphragm pump Internal manifolds, all wetted parts are anodized anti-corrosion, control assembly incorporated or remote.

Tractor PTO connected spline shaft.

Technical Data :
  • Speed :      550 RPM max
  • Pressure :      50 bar max
  • Capacity :      70 LPM max
  • Weight :      18 kg.

Honda Engine coupled:

Coupled with Engine or motor

Technical Data :
  • Speed :      600 to 1200 RPM
  • Pressure :      20 bar
  • Capacity :      50 LPM
  • Pump :      Piston Type
