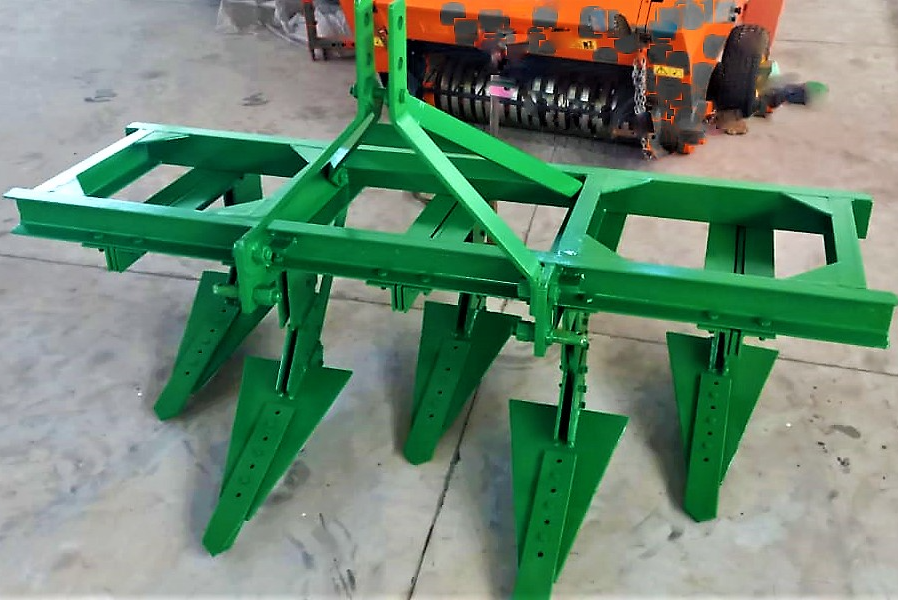

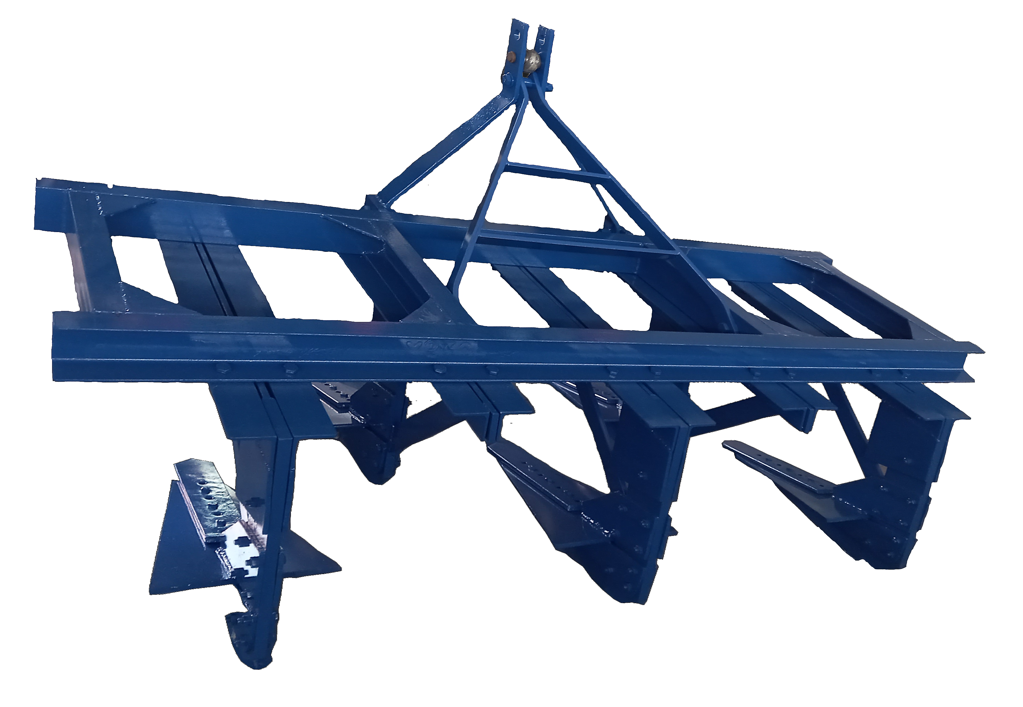

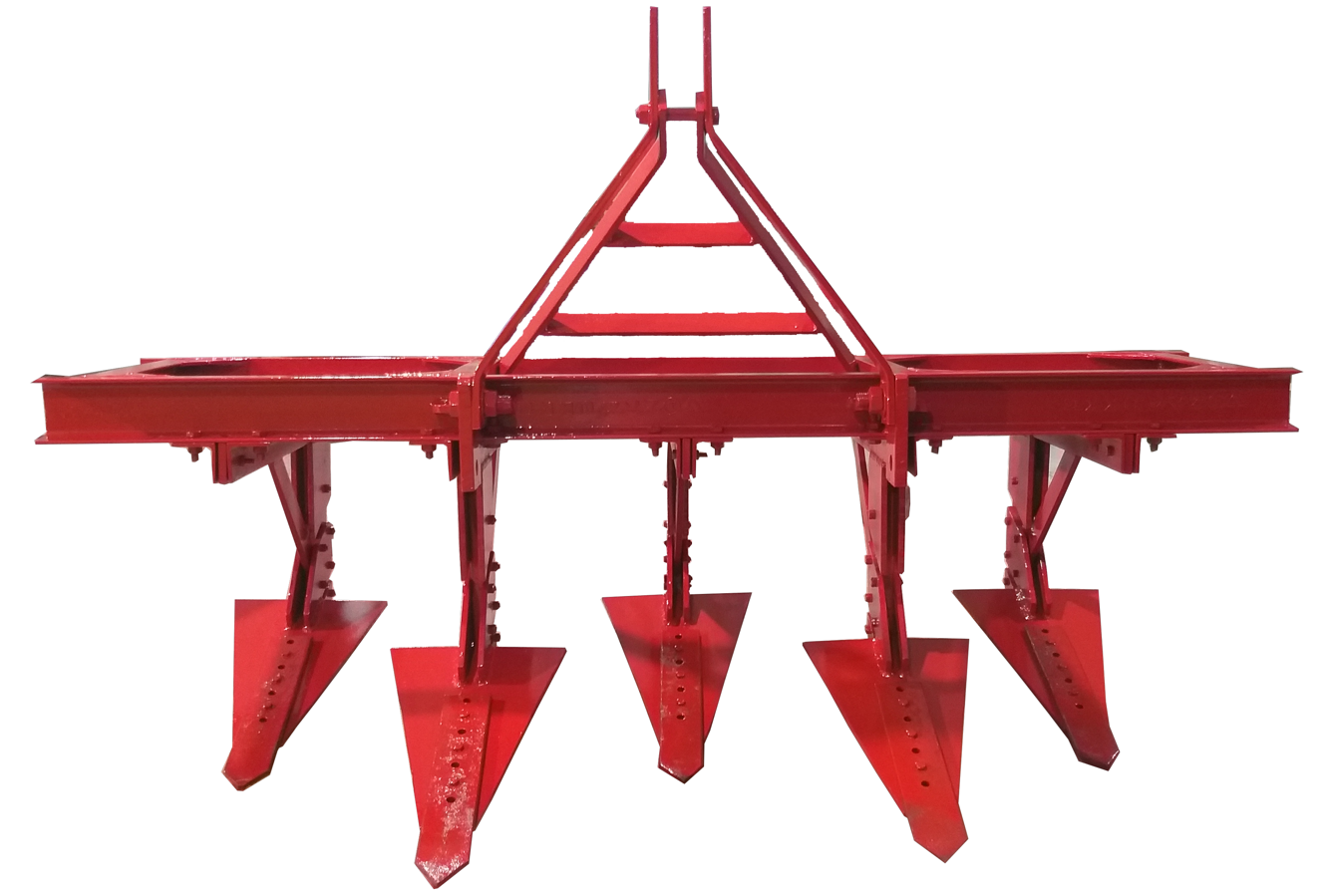

Fixed 5 Tyne Tiller

PRODUCT FEATURES:
  • This 5 tyne assembly is built from heavy duty angles and channels for ultimate strength and performance.
  • It is suitable for hard top soil, uproot stubbles and leaves.
  • Provision for spacing adjustments between tines to be useful for various soil conditions and various crops.
  • It can give the depth up to 7 to 12 inches in hard soil.

PRODUCT SPECIFICATIONS:

  • Mounting    :  CAT II
  • Frame Channel    :    100 x 50 - Vizag/ Sail Make Steel
  • Size of Tyne    :  25 mm Thickness
  • Overall Dimensions ( L x W x H)     :  2000 x 900 x 1170 mm
  • Shovel Thickness     :  Material 8 mm/ En 42
  • Working Width    :   1856 mm
  • Space Between Tyne    :  350 mm
  • Weight (in Kg.)    :  370 to 420
  • Tractor HP Range    :  35 - 50
